The hydraulic rig sinks the CPT cone into the glacial till off Ampthill Road. Depth 8.2 metres. Refusal on dense gravel. This single push defines the bearing stratum for a raft foundation design in Bedford. The data feeds directly into the BS EN 1997-1 design model. We correlate tip resistance and sleeve friction to undrained shear strength. Oxford Clay dominates the geology here. Its behaviour is well-documented but highly variable across the borough. A desk study is mandatory. The CPT test profile reveals soft lenses that spread footings would miss. Rafts bridge these heterogeneities. The rig operator logs every 20 mm. This gives a near-continuous stratigraphic column. No gaps. No assumptions. The result is a bearing capacity calculation that reflects actual ground conditions beneath the Bedford site.
A raft foundation on Oxford Clay performs best when the bearing pressure is kept below 75 kPa and the slab stiffness is tuned to the seasonal ground movement cycle.
Methodology applied in Bedford
Risks and considerations in Bedford
A four-storey residential block near the Embankment. The raft was designed at 350 mm thick. The SI report missed a 1.2-metre lens of soft alluvium at the southern corner. Five years after completion, a 42 mm differential settlement cracked the brickwork from foundation to eaves. The repair cost exceeded the original ground investigation budget by a factor of twelve. This failure was avoidable. The soft lens sat directly beneath the raft edge. A single CPT test push at that corner would have flagged the anomaly. The BS EN 1997-1 framework requires sufficient investigation points to capture lateral variability. For a raft footprint over 200 m², that means at least five boreholes or CPTs. Three-point investigations are inadequate. The Oxford Clay in Bedford is not homogeneous. It never is.
Our services
The raft foundation design integrates site investigation data, structural loads, and ground behaviour into a single coherent package. Each service below addresses a specific stage in the design and verification sequence for Bedford projects.
Ground Investigation for Raft Design
CPT and borehole campaigns to BS 5930:2015+A1:2020 standards. We target a minimum of five investigation points for raft footprints exceeding 200 m². Laboratory testing on Oxford Clay samples includes Atterberg limits, triaxial compression, and oedometer consolidation to define the stiffness and strength parameters for the finite element model.
Settlement and Bearing Capacity Analysis
We calculate immediate and consolidation settlements using the Janbu method and the Skempton-Bjerrum correction for 3D effects. The analysis distinguishes between clay and granular layers. Output includes a contour plot of total and differential settlement across the raft footprint, checked against BS EN 1997-1 serviceability limits.
Reinforced Concrete Raft Detailing

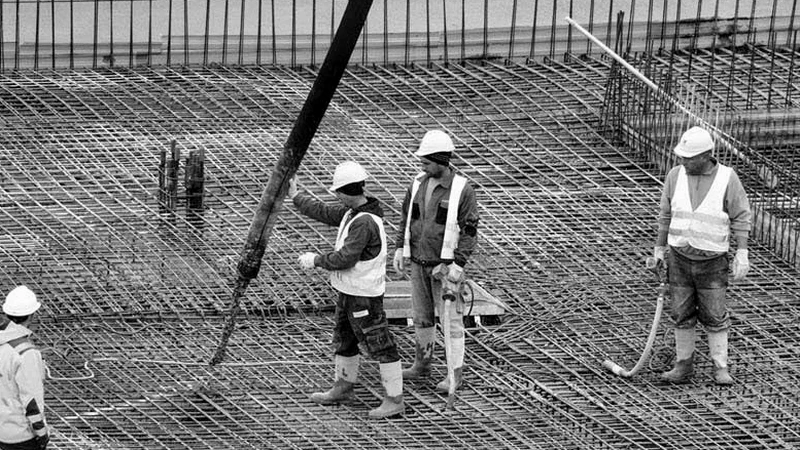

Structural design of the raft slab, edge beams, and any internal stiffening ribs. We specify concrete grade (typically C32/40 for sulfate-resistant conditions in Bedford), reinforcement layout, cover to BS 8500-2, and the interface detail with the anti-heave void former. The package is ready for building control submission.
Quick answers
When is a raft foundation better than strip footings in Bedford?
A raft is preferred when the Oxford Clay has a high shrink-swell potential, when the bearing capacity at shallow depth is below 75 kPa, or when column loads are spaced less than 3 metres apart. It also reduces excavation depth and provides a continuous barrier against ground moisture.
How much does a raft foundation design cost for a typical Bedford house?
The geotechnical design package, including site investigation interpretation, settlement analysis, and reinforcement detailing, ranges from £740 to £3.490 depending on the raft footprint, number of investigation points, and complexity of the ground profile. A single-storey extension sits at the lower end; a full basement raft on variable clay sits at the upper end.
What soil parameters are critical for raft design on Oxford Clay?
Undrained shear strength (from triaxial UU tests), the coefficient of volume compressibility (from oedometer tests), the plasticity index, and the desiccation depth. The modulus of subgrade reaction is back-calculated from these. Seasonal water content variation within the active zone must also be accounted for in the anti-heave design.
