Bedford sits on a sequence of Jurassic Oxford Clay overlain by Quaternary river terrace gravels and alluvium along the Great Ouse floodplain. Groundwater is frequently encountered within 2 to 3 metres of the surface in the valley, and the stiff overconsolidated clay weathers rapidly upon exposure. These conditions demand careful selection between active pre-stressed anchors and passive ground anchors. A pre-stressed anchor transfers load deep into competent strata before excavation proceeds, while a passive system engages only after the retained mass deforms. For deep basement construction near the Embankment, where permissible movement is minimal, the distinction is critical. The retaining wall design methodology directly informs the load envelope applied to the anchorage, and deep excavation monitoring provides the performance data needed to validate design assumptions during staged construction.
Anchor design in stiff clay requires reconciling short-term undrained strength with long-term drained parameters: the critical case often governs the service life, not the construction phase.
Methodology applied in Bedford
Risks and considerations in Bedford
Bedford's Victorian and Edwardian expansion left a legacy of multi-storey brick masonry buildings on shallow strip footings, many within the zone of influence of new deep excavations. Anchor installation beneath neighbouring structures introduces risk of ground loss if drilling encounters voids, loose fill, or pressurised groundwater. Historic brick culverts and cellars, often unrecorded, can cause sudden grout loss during primary drilling. Long-term anchor performance in Oxford Clay is sensitive to seasonal moisture cycles: the upper 2 metres of the clay profile undergoes significant shrinkage and swelling, which can alter the load distribution between the anchor head and the fixed length. An investigation borehole programme combined with in-situ permeability testing helps quantify groundwater flow paths before anchor drilling commences, reducing the probability of grout washout and ensuring the design bond stress values are achievable on site.
Our services
Anchor design in Bedford requires a site-specific approach that accounts for the transition between granular river deposits and cohesive Oxford Clay. The following services form the technical backbone of a reliable anchorage solution.
Anchor Load Testing and Verification
Suitability tests on sacrificial anchors, acceptance tests on production anchors, and long-term monitoring using load cells. All testing follows BS 8081 procedures with calibrated hydraulic jacks and digital logging of load-displacement behaviour.

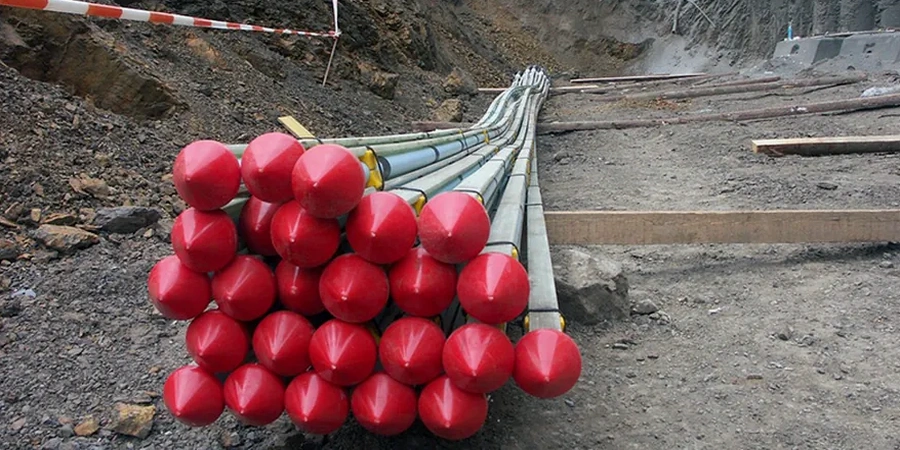

Temporary and Permanent Anchor Design
Calculation of tendon free length, fixed anchor bond length, and overall stability for both active pre-stressed and passive anchors. Designs cover single-level and multi-level anchor arrangements for cut-and-cover excavations and retaining structures.
Corrosion Risk Assessment and Protection Design
Evaluation of ground aggressivity from chemical testing of soil and groundwater samples, specification of Class I or Class II protection systems, and design of anchor head details compatible with permanent waterproofing systems.
Frequently asked questions
What is the difference between active and passive ground anchors?
Active anchors are tensioned to a specified lock-off load after installation, applying a pre-stress to the retained ground before any excavation-induced movement occurs. Passive anchors are not pre-stressed; they develop their resisting force only as the ground deforms and loads the anchor through the structural connection. Active systems suit displacement-sensitive structures in Bedford's urban centre, while passive anchors are common in rock-cut slopes where some deformation is tolerable.
How are anchor bond lengths determined in Oxford Clay?
Bond length is calculated using the ultimate bond stress between grout and ground, derived from site-specific investigation data. In stiff Oxford Clay, typical ultimate bond values range from 80 kPa to 150 kPa for temporary anchors, with a factor of safety of 2.5 to 3.0 applied per BS 8081. Suitability testing on site confirms or adjusts the design value before production anchors are installed.
What is the typical cost range for anchor design in Bedford?
Anchor design fees in Bedford generally range from £730 for a straightforward single-level temporary anchor scheme to around £2,960 for a comprehensive multi-level permanent anchorage design including corrosion assessment, load testing specifications, and construction-phase support. The final fee depends on the number of anchor levels, the complexity of the ground profile, and the testing regime required.
